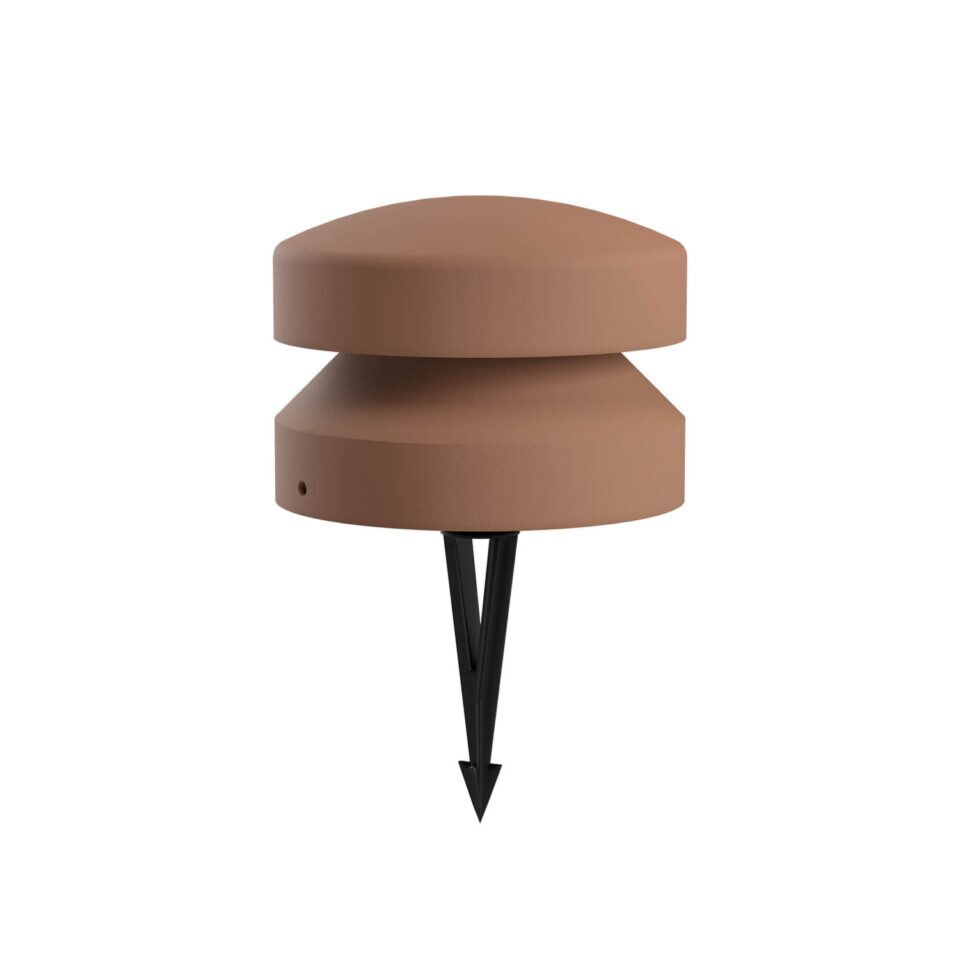

Redo spike Cliff 360°

The Cliff 360° series by Redo Group redefines the concept of outdoor architectural lighting, merging the brutal materiality of concrete with naval-grade engineering choices. Conceived as garden bollards and stakes, these cutting-edge fixtures offer a radial and homogeneous 360° light emission, ideal for enhancing walkways, green areas and prestigious residential or commercial contexts. The external concrete structure is available in three sophisticated material finishes (Ivory, Dark Grey and Terracotta), while the technological heart houses a 5083 aluminum radiator specifically designed for marine use. Equipped with AISI 316 stainless steel components and hardware painted matte black and finished with a frosted, anti-glare glass diffuser, the Cliff 360° lighting fixtures guarantee extremely high color rendering (CRI ≥90) and total resistance to the most aggressive atmospheric agents.

General Technical Specifications of the Line

• Optical Emission: 360° Radial (Constant symmetrical perimeter illumination)
• Color Rendering Index (CRI): ≥90 (Extremely high color fidelity of walkways and vegetation)
• Standard Power Supply Voltage: 220-240V, 50/60Hz (Direct mains power supply, On/Off control) (integrated)
• Marine-Grade Materials: Radiator made of 5083 aluminum alloy, screws and components in matte black AISI 316 stainless steel
• Diffuser: High-diffusion technical satin glass for optimal visual comfort
• Installation: Supplied complete with high-density plastic spike for stable anchoring in the ground
• Smart Ready on Request: Special low voltage version (24V DC) available for wireless remote control or home automation (Triac, Casambi, DALI, Tuya). Contact us for your customized configuration; our team is available to guide you in choosing the best solution for your needs!

Configuration Codes and Performance Tables

1. Compact Series Ø 160 mm (8W Power)

Ideal for intimate walkways, private gardens, and areas requiring discreet yet effective lighting. It features a 24-piece LUMILEDS SMD LED module.

2. Large Series Ø 250 mm (Power 15W)

Designed for large open spaces, main driveways, and contract parks. It is equipped with a 35-piece LUMILEDS SMD LED module with high emission (Imax 206 cd/klm).

Excellent Materials and Cutting-edge Protection

Cliff 360° stands out for its carefully engineered selection of components designed to eliminate outdoor degradation:

• Architectural Concrete Shell: The external block in Colored concrete ensures perfect integration into the landscape. Resistant to micro-impacts, frost, and summer heat, it acquires a unique material appeal over time.
• 5083 Marine-Grade Aluminum Alloy: The internal radiator dissipates the heat generated by the Lumileds LEDs and is forged from 5083 marine-grade aluminum. This alloy offers unsurpassed resistance to intergranular corrosion, making Cliff perfect even in coastal areas exposed to marine aerosols.
• AISI 316 Steel Components: All screws and structural joints are made of AISI 316 austenitic stainless steel (enriched with molybdenum) and further protected by a matte black powder coating to eliminate any risk of rust.

FAQ

What is meant by the standard 220V model and the 24V model on request?
The Cliff range is supplied as standard in the 220-240V configuration with On/Off control: this means that the device has the driver already integrated into the body and connects directly to the normal electrical network, turning it on and off via a standard switch. If you need to adjust the light intensity or integrate the bollards into a home automation system, you can request the special 24V DC low-voltage version. This variant interfaces with power supplies and remote control modules located in an electrical panel for management via Triac, Casambi, DALI, or Tuya Smart protocols.

Why is there a difference between the "Source" and "System" lumens indicated on the data sheet?
The Source lumens indicate the total light emitted by the bare Lumileds LED chips inside the circuit. The System lumens represent the actual light that comes out of the bollard and illuminates the outside environment. The difference lies in the 360° frosted glass diffuser: the glass shields the LEDs to eliminate direct visual glare and make the light soft and comfortable, while retaining a physiological level of emission to ensure excellent optical comfort.

Is the included plastic spike sturdy enough to support the concrete stake?
Yes. The included spike is molded from high-density technopolymer and engineered with structural ribs that prevent bending. Once firmly inserted into the ground or lawn, it provides perfect mechanical anchoring. For installation on concrete screeds or stable flooring (e.g., stoneware or stone), the lamp body can be secured directly to the ground using mechanical anchors using its support base.
