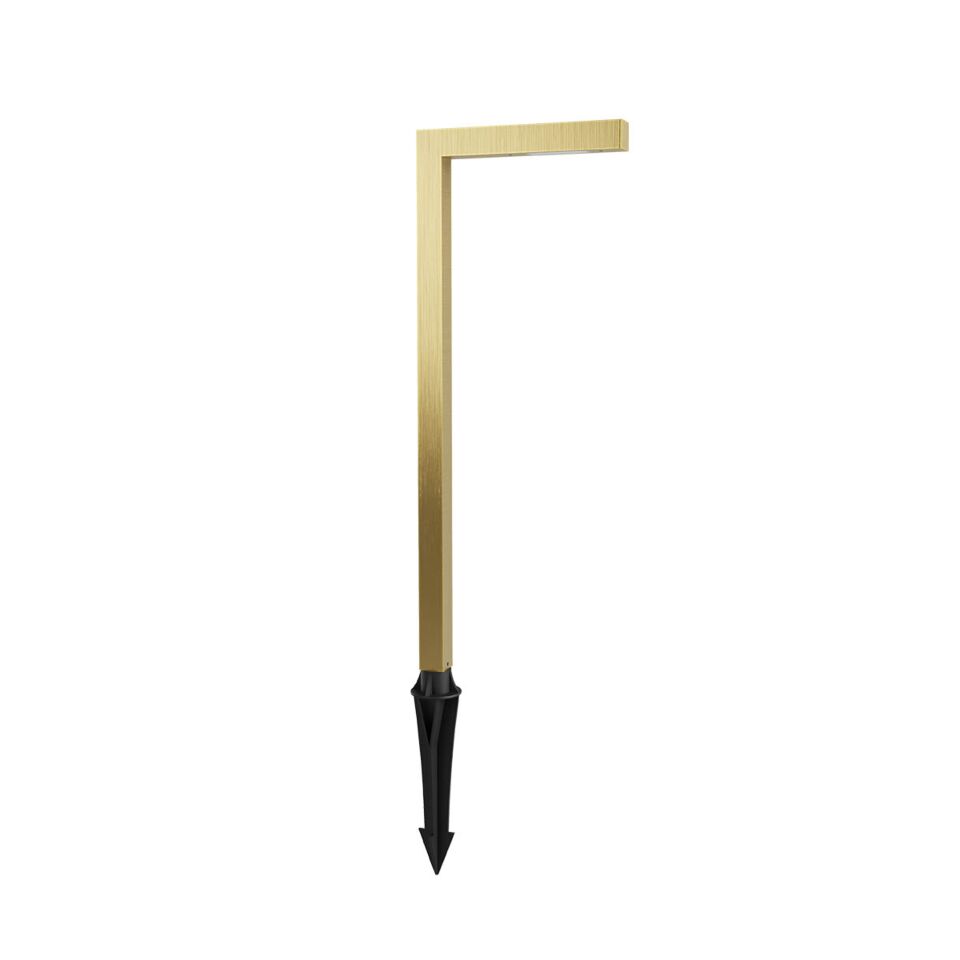

Redo bollard Armin

The Armin outdoor spike by Redo Group stands out for its minimalist design, luminous efficiency, and cutting-edge structural resistance. Designed to enhance walkways, gardens, tree features, and residential facades, Armin is a spike spotlight equipped with latest-generation SMD LED sources. The range offers exceptional finishes for every context: from contemporary variants in painted aluminum (Dark Gray or Corten) to elegant models in Solid Brass (Natural or Antiqued) specifically designed to withstand the salt spray of marine environments. Complete with accessories for stable ground mounting and IP68-rated wiring, Armin is a highly versatile smart lighting system that can be integrated with major home automation and remote dimming protocols.

Technical Specifications and Configuration Codes

• LED Type: SMD LED 3535, 3 pcs
• Input Voltage: 24V DC
• Power: 7W
• Light Source / System: 2700K (500 lm/210 lm) or 3000K (520 lm/230 lm)
• Optics: 45°
• CRI: 80

Material Value, Protection and Engineering

The Armin line is engineered to withstand the most demanding climatic conditions through targeted material choices:

• Aluminum with Anti-Corrosion Treatment: The Dark Grey and Corten versions use a pre-treated aluminum alloy painted with high-density epoxy powders, ideal for gardens, parks and urban areas subject to smog and temperature fluctuations.
• Marine-Grade Solid Brass: The natural and antique brass versions exploit the intrinsic metallurgical properties of solid brass. This material does not rust and tolerates salinity and corrosion from marine aerosols, making it perfect for coastlines, beaches, and beach resorts.
• Anti-Yellowing Diffuser: The thick, transparent polycarbonate diffuser protects the SMD LED chips, ensuring clean, crisp, distortion-free light output without the risk of clouding under UV rays.

Connectivity and System Installation Guidelines

1. Wiring and Water Safety (IP68 Connector)

Each Armin spike comes complete with a pre-wired power cable and an IP68-certified waterproof connector. This component ensures a complete hermetic seal against water and moisture infiltration at the underground electrical connection point, eliminating the risk of short circuits due to torrential rain or electrical systems.Automatic garden irrigation.

2. Low Voltage Power Supply (24V DC)

The fixture operates on low-voltage direct current (24V DC).
Important Note: The driver (power supply) is not integrated into the spotlight body and must be ordered separately based on the number of spikes connected in series and the overall power of the system. Contact us for assistance with your product configuration; our team is always available to guide you to the best choice!

3. Smart Control and Remote Dimming

Armin is designed for advanced light management. By pairing the correct driver, the system supports the main traditional and wireless/home automation control standards, including Triac, Casambi (Bluetooth), DALI, and Tuya Smart, allowing you to create dynamic and personalized lighting scenarios via smartphone or control unit.

Benefits for Designers and Installers

• Two Color Temperature Options (CCT): The choice between 2700K (very warm, intimate, and relaxing light, ideal for historic or hotel settings) and 3000K (warm white, crisp, and modern light, excellent for contemporary architecture) allows Armin to blend into any existing lighting concept.
• Quick and Stable Ground Installation: The included spike accessory is designed to easily penetrate grass, soil, or gravel, providing a robust mechanical anchor that is resistant to gusts of wind or to accidental impacts during garden maintenance.
• SMD LED Efficiency: Integrated SMD LED modules ensure an excellent lumen-per-watt ratio, drastically reducing the overall energy consumption of the outdoor system while maintaining an extremely long lifespan.

FAQ

Can I connect the Armin spike directly to my 230V home electrical system?
No, it is absolutely forbidden. The Armin spike operates exclusively at low voltage (24V DC). Direct connection to the 230V line would instantly burn out the SMD LED circuit and void the warranty. It is essential to install a 24V driver (transformer) between the home electrical system and the spotlights.

What is the difference between the aluminum and solid brass models?
The difference lies in the level of chemical and environmental resistance. The aluminum models (Dark Gray and Corten) are ideal for common residential and commercial outdoor environments, both urban and indoor. The solid brass models (Natural or Antique) are specifically designed for marine environments: brass offers superb resistance to the saltiness and humidity of coastal areas, where standard aluminum could corrode over time.

What is the Casambi or Tuya control indicated in the product description?
This indicates that the Armin spotlight can be dimmed and controlled remotely via smart and wireless protocols. By purchasing a remote power supply compatible with Casambi or Tuya technology, you can adjust the spotlight's brightness and turn it on or off directly from your smartphone using a dedicated app or voice commands.
