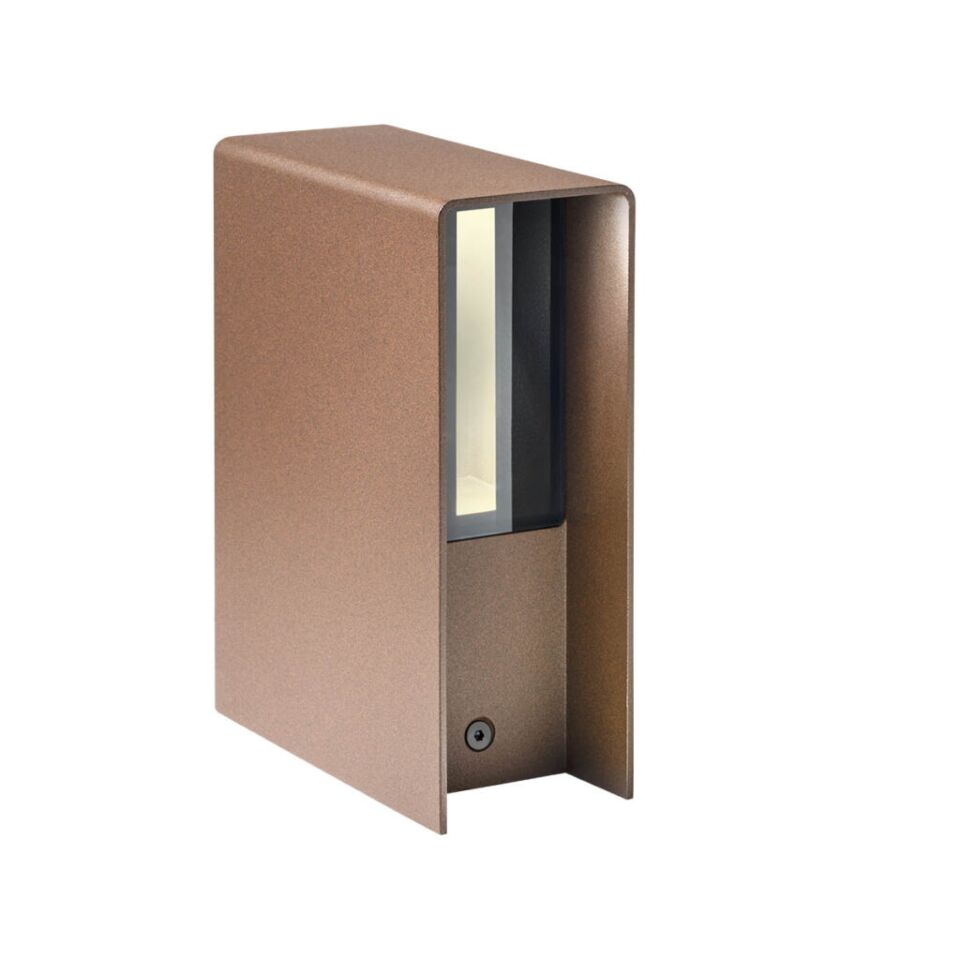

Redo bollard applique Izar

The Izar outdoor lighting fixture by Redo Group is a versatile, dual-purpose system designed to be used both as a bollard and as a wall sconce to provide targeted, accent architectural lighting. This dual installation method combines concentrated light emission with best-in-class structural strength. Ideal for marking paths, enhancing landscape features, or creating geometric blades of light along driveways, facades, and entrances, these fixtures stand out for their cutting-edge protective treatments applied to the body. The die-cast aluminum body undergoes a anti-rust and anti-corrosion cataphoresis cycle before being electrostatically painted. Available in contemporary Dark Gray or Corten finishes. Equipped with a 4-LED XPE Power LED module from the prestigious CREE brand and protected by a transparent glass diffuser, Izar guarantees excellent optical performance and total IP65 weatherproofing.

General Technical Specifications of the Line

• Fixture Type: Outdoor bollard or wall light with concentrated light emission
• Body Material: Die-cast aluminum with protective cataphoresis treatment
• Available Finishes: Dark Grey or Corten (electrostatic coating)
• Anchoring and Fixings: Fixing bracket (ground or wall) and screws entirely in AISI 316 stainless steel
• Diffuser: High-performance transparent technical glass transmittance
• Light Source: Module composed of 4 CREE XPE POWER LED power diodes (4 pieces x 2W)
• Rated Power (Power Source): 11W (including driver efficiency)
• Input Voltage: Direct mains 220-240V, 50/60Hz
• Color Rendering Index (CRI): ≥80
• Light Management / Driver: Non-dimmable On/Off control with integrated protected power supply
• Protection and Safety Rating: IP65 (Total protection against dust and water jets), Insulation Class I

Color Temperature and Performance

The Izar series is available in two distinct shades of warm white to perfectly match the color concept of the outdoor project.

Structural Engineering and Cataphoresis Protection

Izar is built to withstand the harshest environmental conditions thanks to a multi-layered protective architecture:

• Anti-Rust Cataphoresis Treatment: Before the aesthetic finish, the die-cast aluminum is immersed in an electrochemical bath. Cataphoresis. This process uniformly deposits a protective epoxy resin over every millimeter of the light fixture (including within the cavities), creating an impenetrable barrier against oxidation, rust, and corrosion caused by permanent humidity or chemical agents.
• Electrostatic Painting: The final layer in Dark Grey or Corten is applied using UV-stabilized electrostatic powders, ensuring that the color remains unchanged over the years without flaking or fading under the influence of sunlight.
• AISI 316 Stainless Steel Components: The mounting bracket and all structural fastening screws are forged from AISI 316 stainless steel (marine grade), eliminating the appearance of rust at anchor points to the ground, flooring, or walls.

FAQ

What is meant by "concentrated light emission" for the line Izar?
It means that the optical group combined with the 4 CREE XPE Power LEDs shapes the light into a narrow, directional and geometric beam. Instead of dispersing the brightness generically into the surrounding environment, Izar projects defined and clean blades or cones of light, ideal for creating pathsEffective visual effects both when installed on the ground and when mounted on the wall to graze walls, facades, and perimeter walls.

Does the Izar fixture require external power supplies or dedicated junction boxes for the drivers?
No, the fixture operates at 220-240V and integrates the On/Off driver directly within the waterproof aluminum casing. The installer can connect the product directly to the mains power line, simply making sure to connect the external cables inside junction boxes or connectors with a suitable protection rating (e.g., IP67/IP68) to protect the system from damp walls or ground.

How does the Corten finish compare to the Dark Grey finish?
The difference is purely aesthetic and depends on the style of the landscape or architectural project. The Dark Grey version offers a minimal, technical, and rigorous look, perfect for modern and urban contexts. The Corten version faithfully reproduces the typical rusty brown hue of oxidized metal, integrating beautifully into planted gardens, stone facades, historic areas, or contexts where materials with warm, natural tones are preferred, maintaining in both cases the same identical chemical resistance to corrosion.
