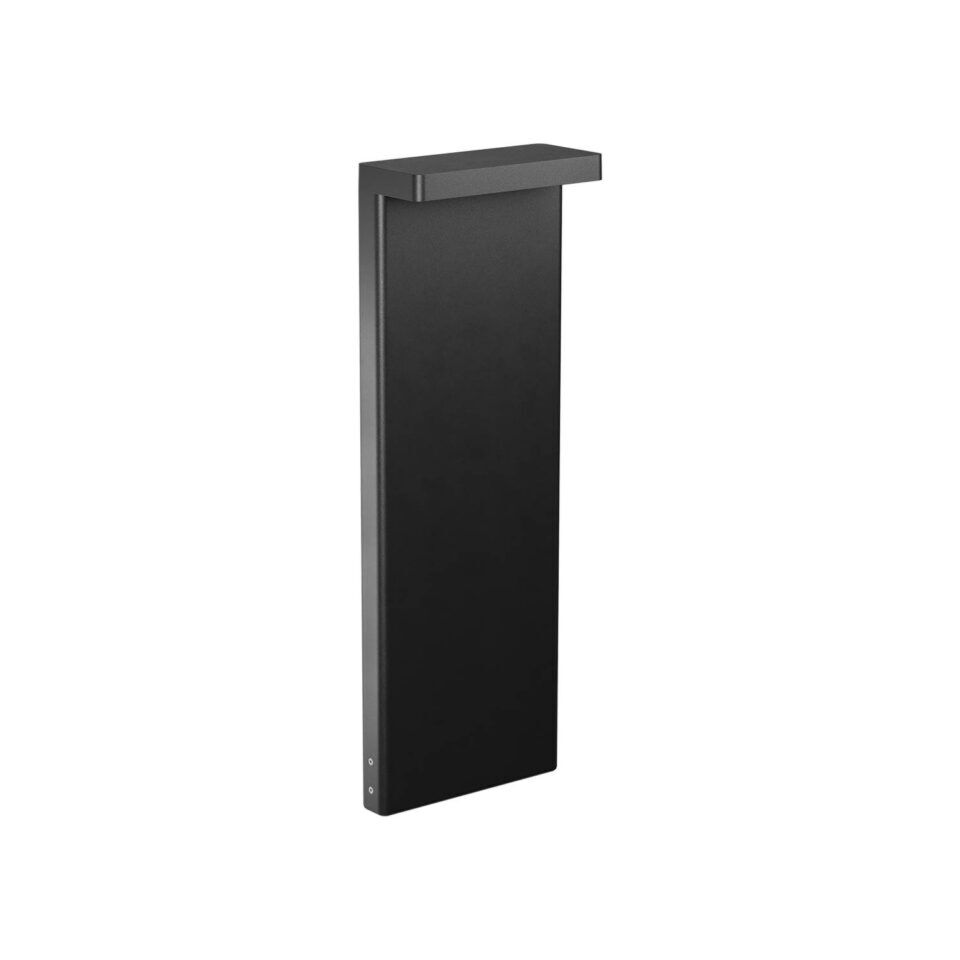

Redo bollard Kant

The Kant outdoor bollard collection by Redo Group extends the clean, minimalist, geometric elegance of the eponymous line into a structural ground-mounted solution, ideal for illuminating walkways, paths, gardens, and driveways. These bollards stand out for their exceptional lighting flexibility, integrating a system that offers the possibility of changing the color temperature between 2700K and 3000K directly during assembly. The die-cast aluminum body is subjected to an advanced cataphoresis cycle for anti-rust and anti-corrosion protection, finished with a high-resistance powder coating available in Sand Black (sandblasted matt black), Corten, or Dark Grey. Equipped with a matrix of 88 SMD 2835 LEDs and protected by a satin or opal polycarbonate diffuser, Kant bollards project an extraordinarily uniform, glare-free light and boast IP65 weatherproofing. For advanced home automation or centralized management, a low voltage 24V DC version is also available upon request. Contact us for your customized configuration; our team is at your disposal to find the ideal solution to illuminate your outdoor spaces!

General Technical Specifications of the Line

• Fixture Type: Outdoor bollard with uniform geometric diffusion
• Body Material: Die-cast aluminum with high-density cataphoresis treatment
• Available Finishes: Sand Black, Corten, or Dark Grey
• Diffuser: Satin or opal polycarbonate, anti-yellowing and UV-stabilized
• Light Source: High-density LED module with 88 SMD 2835 LEDs (88 pieces x 0.14W)
• Nominal Power (Power Source): 15W
• Source Luminous Flux (LED Flux): 2700K: 2086 lm | 3000K: 2151 lm
• Effective Luminous Flux (System Flux): 2700K: 980 lm | 3000K: 1011 lm
• Color Temperature (CCT): Selectable via switch between 2700K (very warm light) or 3000K (warm white light)
• Color Rendering Index (CRI): ≥80
• Standard Input Voltage: 220-240V, 50/60Hz (Direct mains power supply, On/Off control)
• Special Configurations (On Request): Model operating at 24V DC with the possibility of remote control via Triac, Casambi, Dali, Tuya protocols
• Protection and Safety Rating: IP65 (Total protection against dust and water jets), Insulation Class I

Available Dimensions and Lighting Performance

The Kant bollard series comes in two different heights to precisely meet the volumetric needs and lighting calculations of outdoor projects, while maintaining consistent lighting performance.

CCT Flexibility, Cataphoresis Treatment and Options Smart

Kant bollards are engineered to offer maximum aesthetic customization and cutting-edge technological control:

• Selectable CCT Technology: Inside the bollard head, there is a hardware selector that allows you to set the ideal light color before finally fixing it to the ground. The 2700K option offers a warm, soft, and welcoming atmosphere (splendid on the Corten finish), while the 3000K option generates a brighter, sharper warm white light (ideal for road safety or modern walkways in Dark Grey or Sand Black).
• Anti-Corrosion Double Cataphoresis Screen: Before receiving the powder coating, the die-cast aluminum undergoes a cataphoresis treatment. This electrochemical bath seals the metal at the molecular level, preventing the formation of rust, oxidation, and limescale buildup caused by direct contact with the ground, humidity, and humidity.lawn moisture or irrigation system spray.
• Smart 24V DC Ready (On Request): For smart lighting or advanced home automation projects, the Kant line offers a low-voltage 24V DC variant. This version allows for remote power control and control of light intensity or time settings by integrating the bollards with Triac, Dali, Casambi wireless ecosystems, or Tuya smart platforms.

FAQ

What height is best to choose between the 35 cm and 65 cm models?
The choice depends on the function and context. The 35 cm bollard is perfect for grazing and atmospheric lighting focused directly on walkways, ideal for the edges of flowerbeds, terraces, or intimate walkways. The 65 cm model is recommended for driveways, main entrances, or greenery paths where surrounding vegetation could partially obscure or screen a lower bollard.

How does the 24V DC variant available upon request work?
In the standard 220-240V version, the bollard connects directly to the mains and switches on and off in On/Off mode. The special 24V DC version requires a remote power supply (housed in an electrical panel or waterproof box). This low-voltage system is ideal if you want to dim the bollards or connect them to an advanced home automation system, allowing for wireless (Casambi, Tuya) or wired (Dali) management of the entire outdoor system.

Is the opal polycarbonate diffuser likely to yellow or crack in direct sunlight?
No. The polycarbonate used in the Kant line is a high-strength technical grade, specially treated to resist the degrading effects of ultraviolet (UV) rays and seasonal temperature changes. Its opal/satin finish maintains its shape over time, continuing to ensure excellent light diffusion and eliminating any annoying point glare generated by the 88 internal LEDs.
