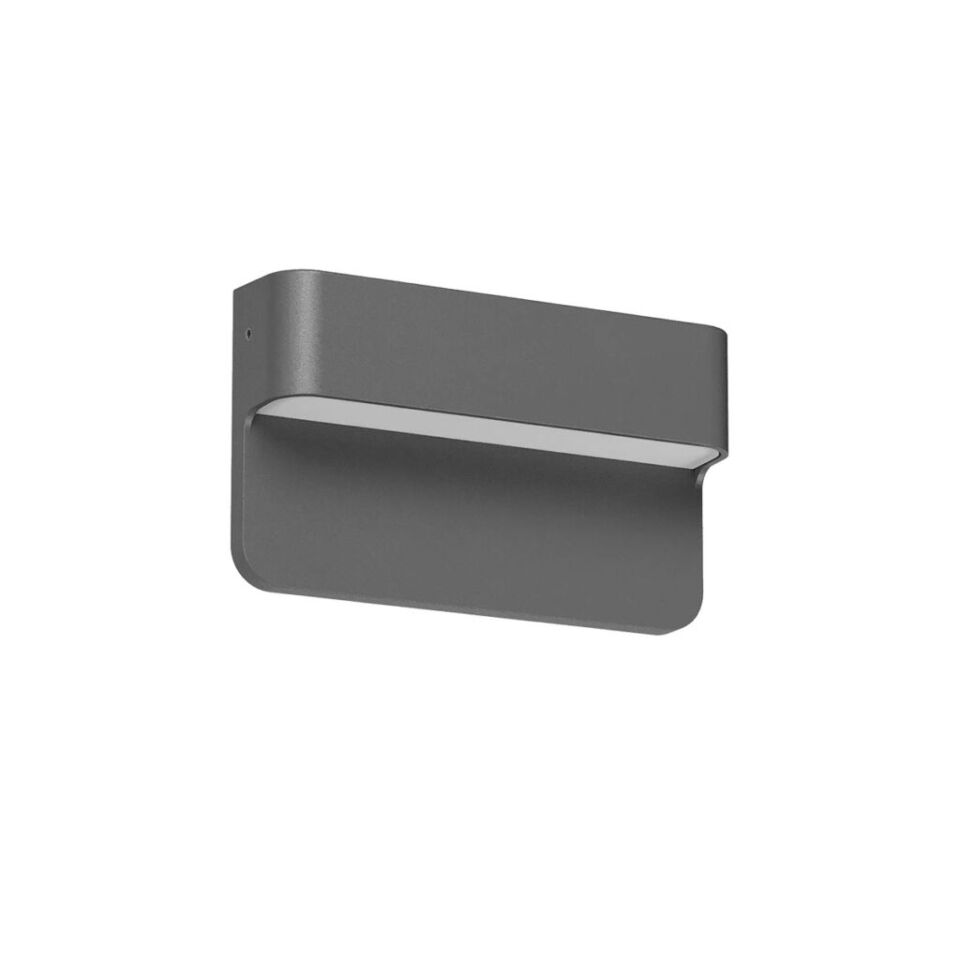

Redo step light Kant

The Kant collection of outdoor step lights by Redo Group applies the geometric rigor and clean aesthetic of the eponymous line to compact surface-to-wall solutions, specifically designed for safety lighting of stairs, walkways, ramps, and outdoor perimeter paths. These fixtures stand out for their exceptional lighting flexibility, integrating a hardware system that offers the possibility of changing the color temperature between 2700K and 3000K directly during installation. The die-cast aluminum body is subjected to an advanced anti-rust and anti-corrosion cataphoresis cycle, finished with a high-resistance powder coating. Equipped with a matrix of SMD 2835 micro-LEDs and protected by a satin or opal polycarbonate diffuser, Kant step lights project an extraordinarily soft, uniform, and glare-free light, guaranteeing total IP65 insulation against the elements. For advanced home automation or centralized management, the low voltage 24V DC version is also available upon request. Contact us for your customized configuration; our team is at your disposal to find the ideal solution to illuminate your outdoor spaces!

General Technical Specifications of the Line

• Fixture Type: Outdoor step lights with uniform geometric light diffusion
• Body Material: Die-cast aluminum with high-density cataphoresis treatment
• Diffuser: Satin or opal polycarbonate, anti-yellowing and UV-stabilized
• Light Source: High-efficiency SMD LED 2835 LED module
• Color Temperature (CCT): Selectable via switch between 2700K (very warm light) or 3000K (white light) (warm)
• Color Rendering Index (CRI): ≥80
• Input Voltage: 220-240V, 50/60Hz (Direct mains power supply, On/Off control)
• Protection and Safety Rating: IP65 (Total protection against dust and water jets), Insulation Class I

Available Dimensions and Lighting Performance

The Kant series of step lights is available in two different structural formats (120 mm and 200 mm) to precisely meet specific space requirements, lighting calculations, and installation height along perimeter walls.

CCT Flexibility, Cataphoresis Treatment and Comfort Visual

Kant step lights are engineered to offer a perfect combination of structural integrity and precise lighting:

• Selectable CCT Technology: A hardware selector switch inside the fixture allows you to set the ideal light color before permanently mounting it to the wall. The 2700K option offers a warm, soft, and welcoming atmosphere (ideal for rustic or historic residential settings), while the 3000K option generates a brighter, sharper warm white light, perfect for optimal safety visibility in modern or commercial settings.
• Double Anti-Corrosion Cataphoresis Screen: Before receiving the powder coating, the aluminum body undergoes a cataphoresis treatment. This electrochemical bath seals the metal at the molecular level, preventing the formation of rust, oxidation, and limescale buildup caused by direct contact with damp walls, sideways rain, or splashes from washing and irrigation systems.
• Anti-Glare Diffusion: The combination of SMD micro-LEDs with the technical opal diffuser breaks up the direct light beam. The light is distributed broadly and envelopingly onto the floor below, eliminating the typical glare when walking up stairs or along narrow walkways.
• Smart 24V DC Ready (On Request)n>: For smart lighting or advanced home automation projects, the Kant line offers a low-voltage 24V DC variant. This version allows for remote power control and control of light intensity or time settings by integrating the step lights with Triac, Dali, Casambi wireless ecosystems, or Tuya smart platforms.

FAQ

How do I select the color temperature between 2700K and 3000K?
The selection is made via a small switch integrated into the back or inside the light fixture, accessible to the electrician during installation. Once the desired color temperature (2700K or 3000K) has been set, the fixture is wired to the mains and permanently sealed to the wall.

Which size is recommended: the 120 mm or 200 mm model?
The choice depends primarily on the installation height and width of the walkway to be illuminated. The 120 mm model (3W) is ideal if installed at a low height (about 200-300 mm from the ground) to illuminate individual steps of a staircase or intimate walkways. The 200 mm (4.5W) model offers higher luminous flux and a wider throw, making it ideal for positioning higher up along perimeter walls, access ramps, or wide outdoor corridors.

Do these step lights require an external transformer?
Kant step lights already have an integrated power driver and operate directly from the 220-240V mains voltage without the need for remote power supplies.
