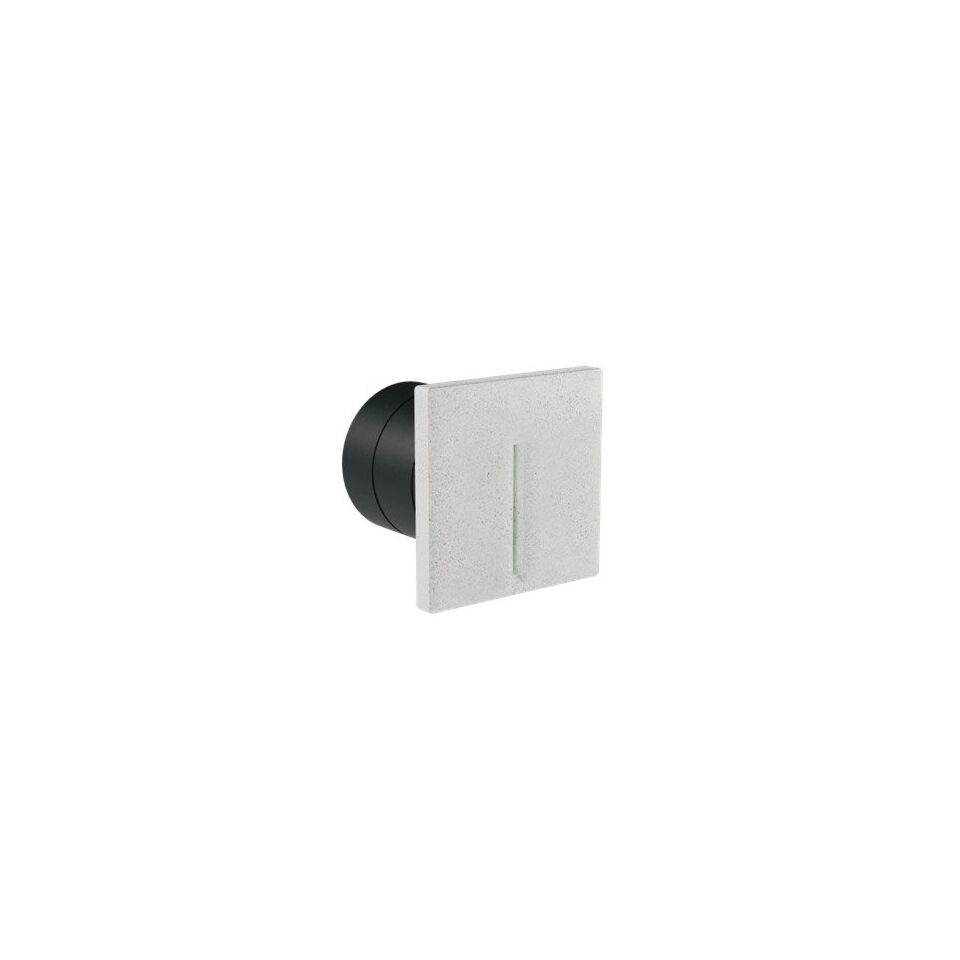

Redo step light Bast

The Bast collection of recessed wall step lights by Redo Group represents the ideal combination of geometric minimalism, the material appeal of concrete, and technical outdoor safety lighting. Designed for recessed wall installation, these spotlights offer asymmetrical emission specifically directed downwards, ideal for flawlessly illuminating pedestrian paths, stairways, outdoor walkways, and residential or commercial access corridors without generating annoying direct glare. The body combines a visible architectural concrete structure – available in refined Ivory or Dark Grey finishes – with internal components in die-cast aluminum painted matte black, protected by a transparent glass diffuser. Thanks to the integrated driver and an IP65 protection rating, the Bast series guarantees maximum weather resistance and easy direct wiring.

General Technical Specifications of the Line

• Installation Type: Recessed wall (Step lights / Recessed step lights)
• Optical Distribution: Asymmetrical (Beam directed at the ground for maximum safety on walkways)
• Available Finishes (Concrete): Ivory or Dark Grey
• Internal Structure and Fixtures: Die-cast aluminum painted matte black
• Diffuser: High-transmittance transparent glass
• Light Source: Single, ultra-high-efficiency power chip POWER LED XTE CREE (1 spotlight x 2.5W)
• Rated Power (Power Source): 2.5W
• Color Temperature (CCT): 2700K (Very warm, welcoming light with a high visual impact)
• Color Rendering Index (CRI): ≥90 (Very high surface color fidelity)
• Light Management / Driver: On/Off control with power driver integrated into the lamp body
• Input Voltage: Direct mains 220-240V, 50/60Hz
• Protection and Safety Rating: IP65 (Total protection against dust and water jets from any direction), Insulation Class I

The Three Emission Designs: Configuration and Fluxes

The Bast series comes in three aesthetic and geometric variations of the front slit, designed to customize the light pattern on the floor. All models share a gross LED flux of 147 lumens.

Materials Engineering and IP65 Protection

The Bast series adopts construction solutions designed to withstand the outdoor environment, ensuring a long operating life:

• Architectural Concrete Shell: The external frame in colored concrete (Ivory or Grey) gives a solid and elegant appearance, integrating perfectly with smooth walls, stone walls, exposed concrete, or modern facades.
• Die-Cast Aluminum and Glass Core: The technical chamber containing the CREE chip is made of die-cast aluminum, which guarantees excellent heat dissipation, and sealed by a high-resistance transparent glass diffuser.
• Total IP65 Insulation: Internal silicone gaskets and precision assembly protect the electronics from humidity, heavy rain, frost, and dust, making the step lights suitable for any outdoor installation exposed to the elements.

FAQ

What does "Integrated Driver" mean in the technical data sheet?
It means that the spotlight already includes the electronic power supply. There is no need to purchase separate transformers or prepare remote housings in the electrical panel: the Bast step light connectsIt connects directly and immediately to the standard 220-240V home electrical line, drastically simplifying wall installation.

Why is there such a large difference in "System" Lumens between the slotted model (20 lm) and the trapezoidal model (78 lm) if the internal LED is identical?
The difference is determined exclusively by the geometric shape of the concrete body. The CREE LED chip releases the exact same amount of original light (147 lm) in all three models. However, the "slot" model screens out light more, allowing only a thin, graphic beam of light (20 lm) to pass through, while the wider aperture of the "trapezoid" model allows a much higher amount of real light (78 lm) to be projected onto the floor, ideal if greater illumination is needed on the floor.

Can step lights be installed in areas close to the ground subject to heavy splashes of water or mud?
Yes. Thanks to the IP65 certified protection rating, the fixture is completely protected against dust and perfectly resists direct jets of water (such as those from a garden hose or an automatic irrigation system). Since these are recessed wall models, it is simply recommended to use the appropriate formwork during the masonry work and to ensure proper rear drainage to avoid permanent water stagnation inside the wall recess.
